Defence
TPMS & CTIS for Truck

World's First CTIS for Defense Vehicle with Integrated TPMS

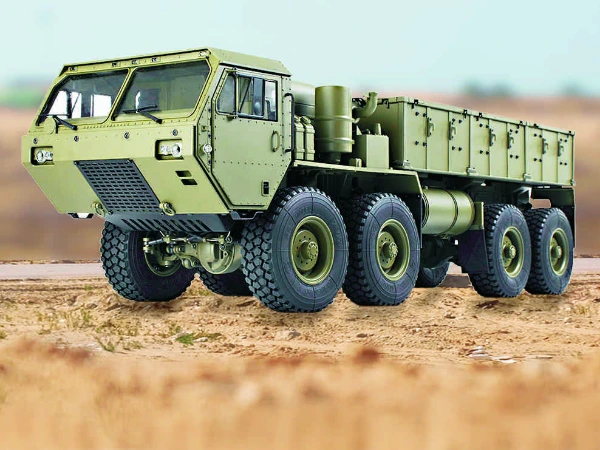

Manatec CTIS with TPMS inside is world's first development of CTIS coupled with benefits of TPMS. In traditional CTIS without TPMS, the Tyre pressure of each tyre is measured once in 10 minutes (or as per the requirement of customer) by operating solenoids. However in Manatec CTIS + TPMS inside, the TPMS sensors inside the Tyres transmit live pressure of tyres at all times. Hence there is no need to operate the solenoids compulsorily every 10 minutes to measure pressure. Inflation or deflation happens ONLY when there is deviation in recommended settings. This saves compressed air usage considerably. Air is used only when needed and cuts off automatically upon reaching recommended settings. The Electro Pneumatic Control Hub (EPCH) also operates only on need to use basis thus prolonging the life of internal solenoid parts. CTIS+TPMS prolongs life of compressor, EPCH and other parts thus saving on service and replacement costs.

CTIS Engineered for Reliability

Manatec CTIS maximizes vehicle mobility through engineering solutions to monitor and control tyre pressure from driver's cabin. This integrated tyre pressure management helps in maintaining optimal tyre pressure in all tyres at all times. This in turn helps in improved road traction, last mile Vehicle efficiency, increase in tyre life and savings in fuel cost. Manatec CTIS takes CTIS solution one notch up by integrating TPMS sensors for live measurement and display of tyre pressure, thus releasing compressed air only when needed. This helps to save compressed air, reduce fuel cost and reduce wear and tear of moving parts

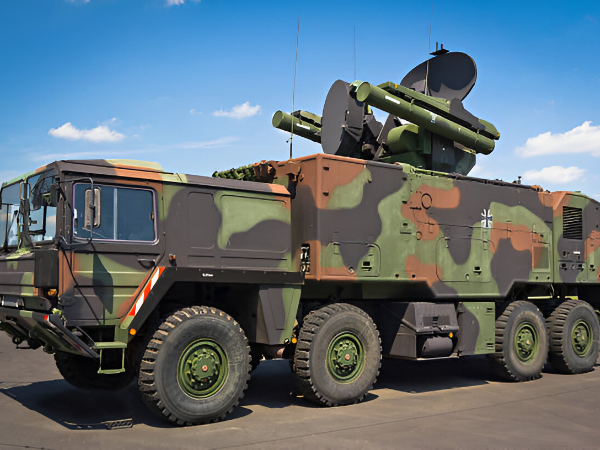

defence-2

Integrated TPMS & Benefits of CTIS for Defence Vehicles

CTIS removes unpredictability in tyre pressure and introduces not only live pressure data, but also driver control in inflation or
deflation with touch of a button.

TPMS for Car in India

CTIS increases Tyre life upto 15% through ensuring optimal pressure in all Tyres at all times.

Security Shield for AutoMotors

Driver comfort – vehicle vibration and driving discomfort considerably reduced.

Sustain CTIS for Defence Vehicle

CTIS helps in sustainability and environment hrough less fuel consumption

Air Suction Censor for Fleet management

Fleet mobility – ensure peak performance across all terrain in all weathers.

TPMS for Scooters Fuels

CTIS saves fuel consumption cost upto 4%. This is achieved through reducing rolling resistance of tyres due to abnormal tyre pressure.

CTIS for commercial Vehicle LCV

CTIS enables Last mile Tyre efficiency.

Risk Management for Fleet Management System in India

CTIS eliminates risk of accidents, vehicle breakdown or immobilization due to deflated tyres.

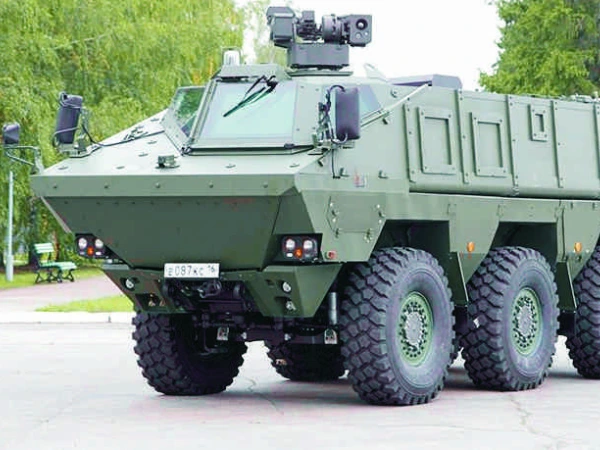

WHY MANATEC CTIS for Military Truck

Why Choose Manatec Mobility CTIS for Defense Vehicles?

For over 30 years, MANATEC has designed and developed indigenous technology solutions in the field of automotive service equipment. Recent development of World's first 3D wheel alignment technology for trucks and Bus has earned Manatec 4 patents from USA, Europe, India and Australia. Manatec also has designed 10 different service station equipments as import substitute products. With the government recognized in-house R&D team, MANATEC is also the first company in India to independently design and manufacture complete range of TPMS products. With strong innovation driven R&D team, MANATEC has secured leading Tire and car OEM approvals for its products and exports to more than 60 countries.
Manatec Mobility CTIS Technical Specifications

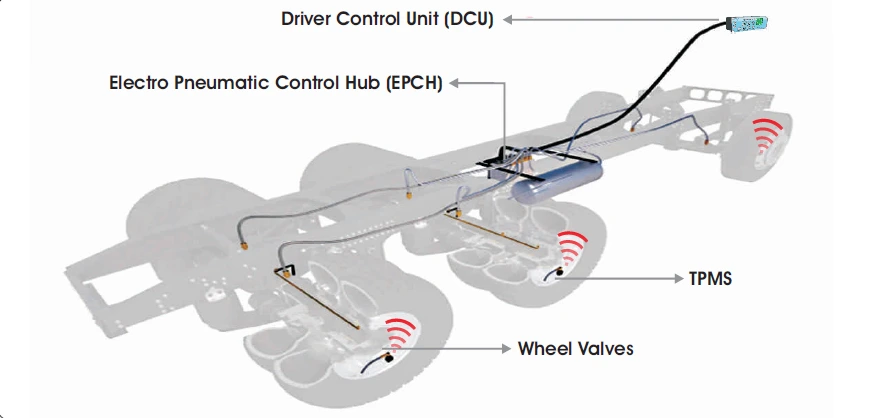

Manatec Mobility CTIS in India

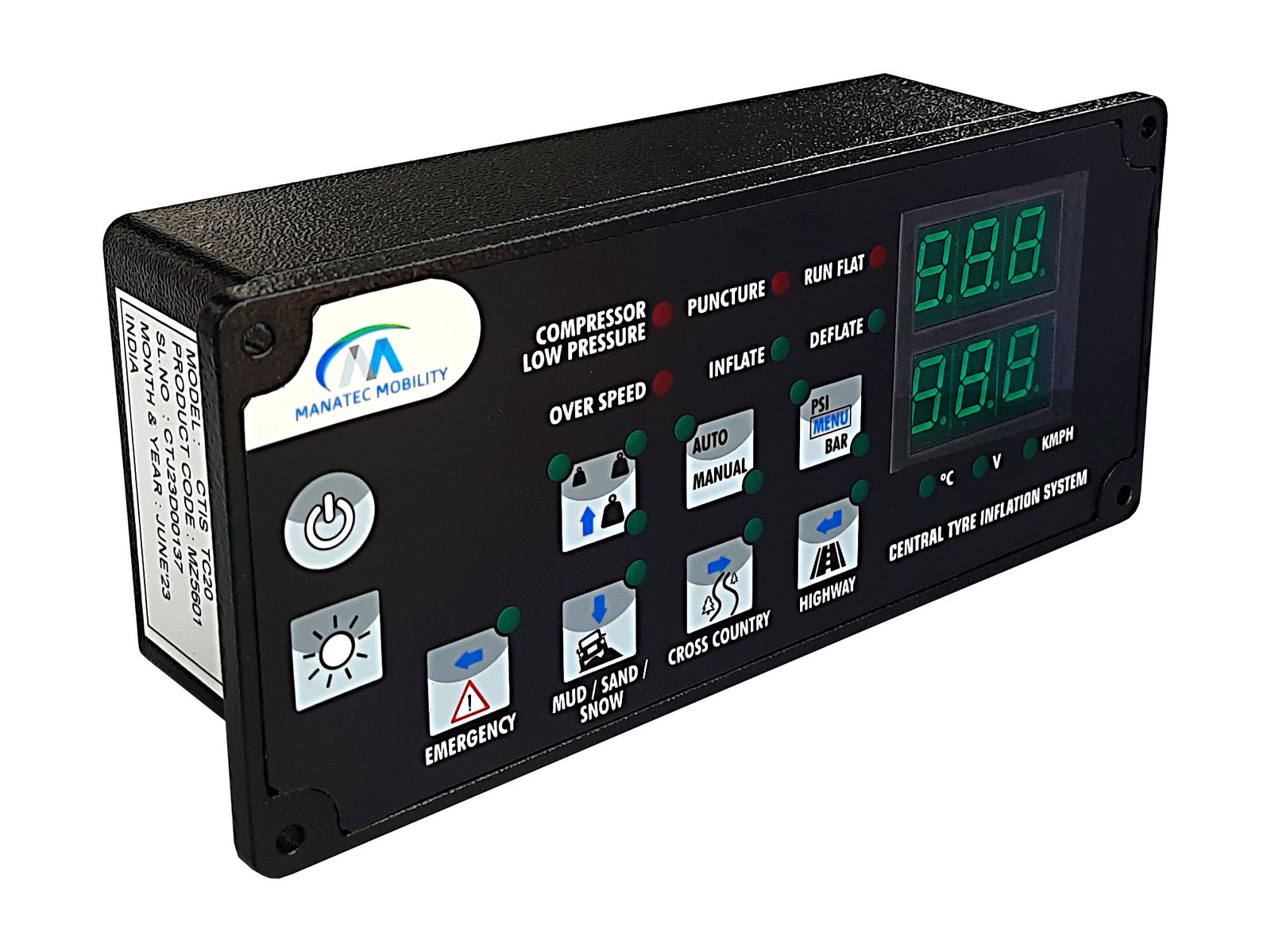

Driver Control Unit (DCU)

The Driver Control Unit (DCU) is the control center of CTIS. It is from here, the driver selects the terrain and load settings and inflates or deflates tyres. The DCU displays tyre pressure of all tyres sequentially (live if TPMS is installed) and receives various alerts and indications regarding CTIS parameters.

Manatec mobility TPMS in india

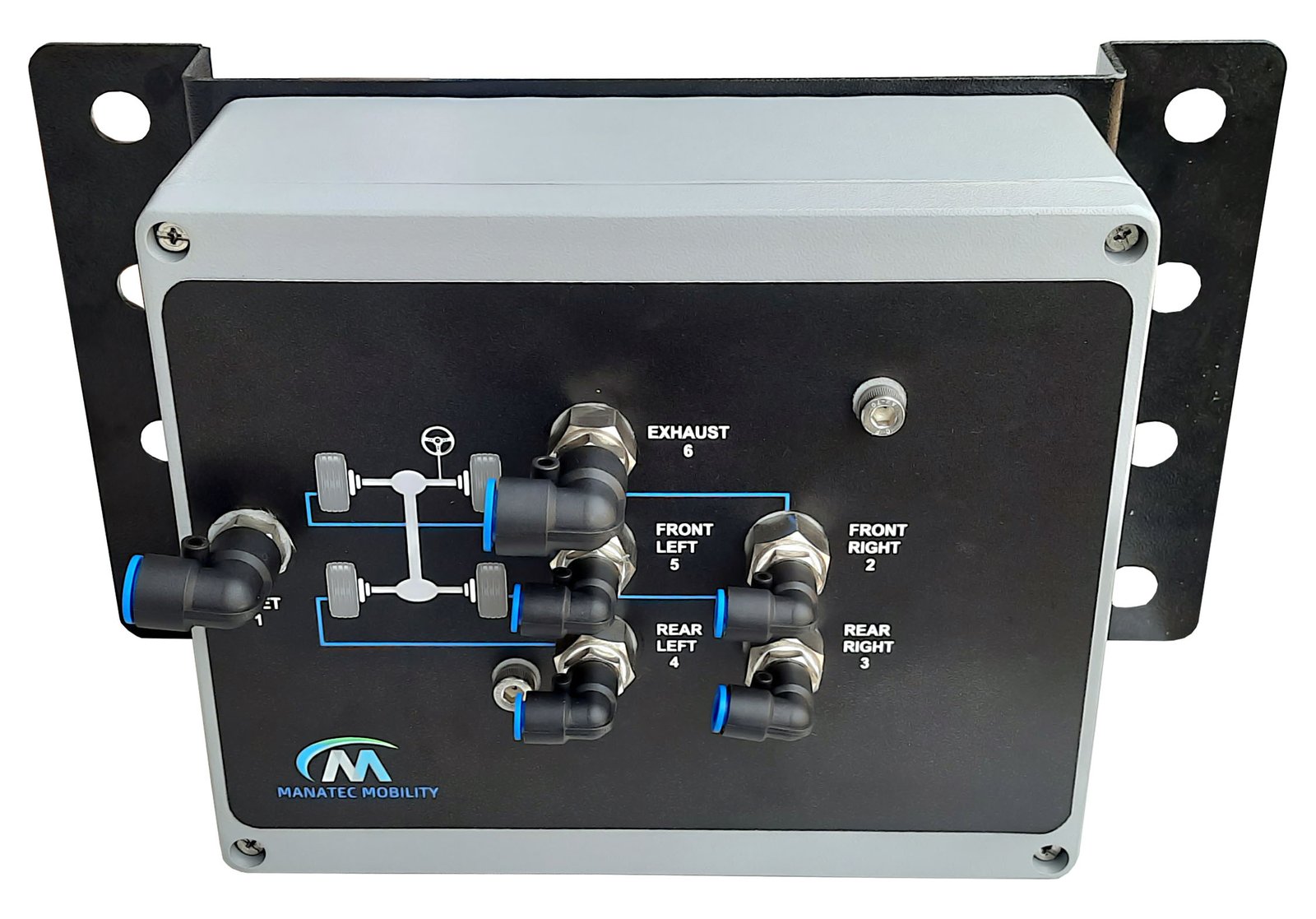

Electro Pneumatic Control Hub (EPCH)

The Electro Pneumatic Control Hub (EPCH) is located in the center of the vehicle axle and acts as the hub. It is a micro processor based unit that regulates air pressure in all Tyres, as per driver's commands through DCU.

Wheel valves that integrate TPMS in India

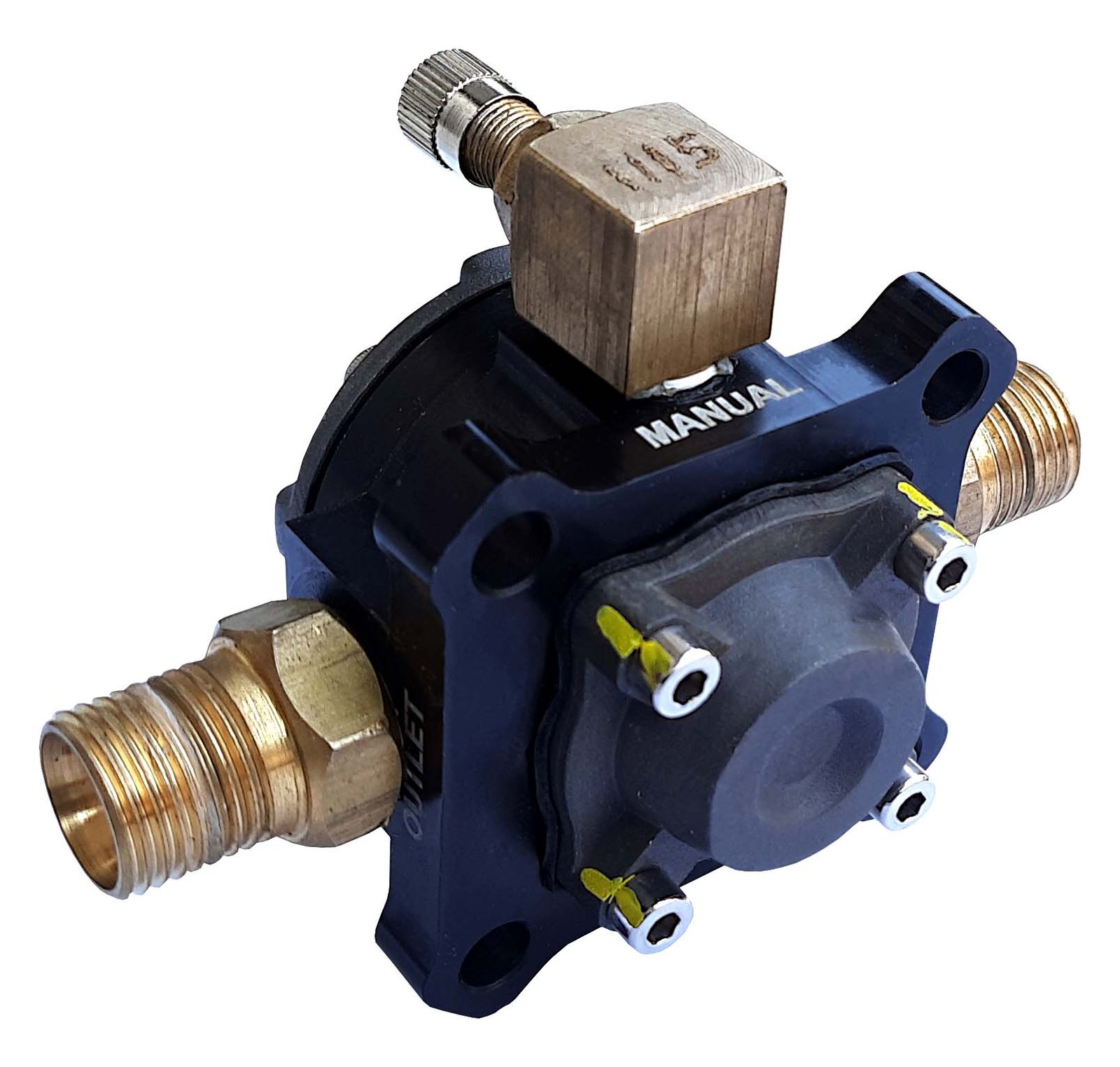

Wheel Valve

Wheel Valves controls the air flow during inflation and deflation modes. It seals the air pressure in the tyre and prevents leakage.

Easily serviceable without removing tyres
TPMS Installed for LCV Device Control Blueprint
MANATEC CTIS FEATURES

Auto recheck & Adjust

Measures the tyre pressure at regular interval and maintains the right tyre pressure by inflation or deflation

Auto run flat

Abandons Punctured tyre warning, if the puncture tyre situation continues for more than a stipulated period and cautions the user.

Over speed protection

Based on the vehicle's speed, determines the right terrain ,alerts for user's intervention for a stipulated time and automatically changes the terrain thereafter

Blackout mode

Shut downs completely in order not be sensed during stealth situations.

Low air warning

Cautions the user if the compressor pressure is less than the required minimum pressure for CTIS so as to save the air for braking application

Supports 4 Terrains

Highway, Cross country, Mud/Sand/Snow & Emergency.

Punctured tyre warning

Recognizes a punctured tyre situation based on the rate of change of pressure and cautions the user.

Supports 3 different load conditions

Empty, Partially Loaded and Fully Loaded.

Application of CTIS for Defence Vehicles

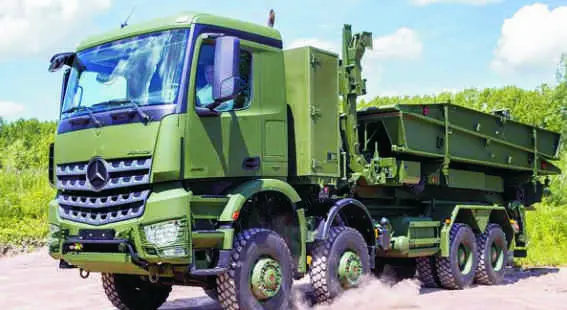

Installed CTIS for Military vehicles.

Military - CTIS

Military - CTIS is an important fixture in military vehicles which includes War Field Vehicles, Armoured Personnel Carriers, Utility Vehicles, Logistics Vehicles and high altitude vehicles. CTIS eliminates vehicle breakdown due to deflated tyres, which is critical for military vehicles.

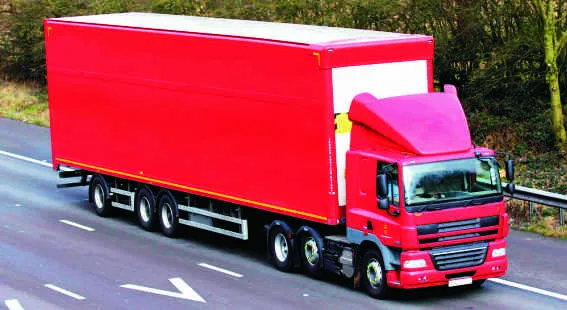

TPMs and CTIS for HCV Mining, Logistics, Oil & Gas

Mining, Logistics, Oil & Gas

The facility to change terrain, inflate and deflate tyres comes in as a very useful function for drivers operating vehicles in this segment. CTIS increases driver comfort & ensures safety, saves fuel cost and reduces tyre wear.

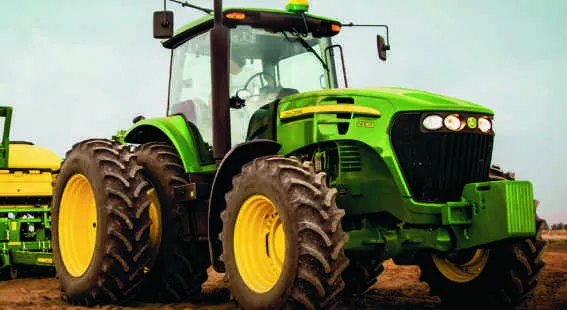

CTIS for Agriculture Vehicle

Agriculture

Soi l compaction is a serious issue for many farmers. When soil is compacted, it loses the ability to store air and water, which are crucial for seed germination and crop growth”. CTIS helps in reducing soil compaction in agriculture thus enhancing crop productivity.
